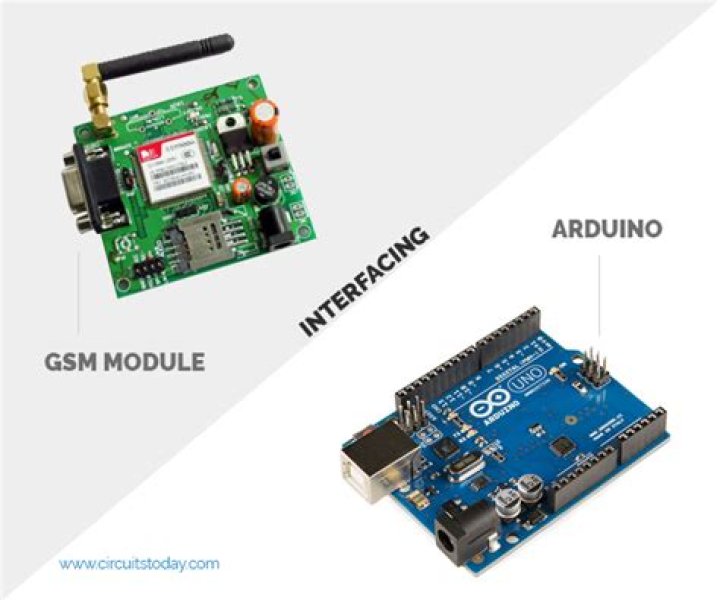

How can I send SMS using GSM module and Arduino?

Send SMS using push switch When the pushbutton is pressed, the Arduino sends the AT commands to the GSM module, for a text SMS; the GSM module works with the “AT commands”. Connect the TX, RX and GND pins from the Arduino to the GSM as labelled in the diagram. Then connect the push switch between the 5V and pin2.

Also know, how can I receive SMS using GSM module with Arduino?

The AT command to receive a live SMS is “AT+CNMI=2, 2, 0, 0, 0” – we just need to send this command to GSM module and apply a 1 second delay. Once you send this command, try sending an SMS to the SIM card number put inside GSM module. You will see the SMS you had sent displayed on your Arduino serial monitor.

Also Know, how do I interface a GSM and GPS module with Arduino? We will use a micro sim on this, and take note that the sim must have load.

1. Step 1: Connecting GSM and GPS Module to the Arduino. GSM Module to Arduino.
2. Step 2: Software Connection. Connect the USB Cable to a PC or Laptop.
3. Step 3: The Code. Copy the code then compile.
4. Step 4: Viewing the Result.

Similarly, how can I send message through GSM?

Then use the computer / PC and AT commands to instruct the mobile phone or GSM/GPRS modem to send SMS messages. Connect the computer / PC to the SMS center (SMSC) or SMS gateway of a wireless carrier or SMS service provider. Then send SMS messages using a protocol / interface supported by the SMSC or SMS gateway.

How do I give a power supply to a GSM module?

Both 1.8 volts and 3.0 volts SIM Cards are supported by SIM900A – the SIM card voltage type is automatically detected.

1. Assemble GSM Antenna to the modem.
2. Connect serial cable to the modem.
3. Give power supply in between 4.5V to 12V through the power jack provided.
4. Default factory Baudrate is 9600.

Related Question Answers

Which is the best GSM module?

SIM900 is the most popular GSM/GPRS module model out there. This module comes in 3 variants namely – SIM900, SIM900A and SIM900D. Out of these 3 model variants, SIM900 – is the only Quad Band (supporting all 4 frequency bands – 850/900/1800/1900 Mhz)) GSM module model.

What is a GSM module?

A GSM module or a GPRS module is a chip or circuit that will be used to establish communication between a mobile device or a computing machine and a GSM or GPRS system.

How does a GSM module work?

GSM is a mobile communication modem; it is stands for global system for mobile communication (GSM). A GSM digitizes and reduces the data, then sends it down through a channel with two different streams of client data, each in its own particular time slot.

What is the range of GSM module?

The GSM specifications also describe 'railways GSM', GSM-R, which uses frequency range 876 - 915 MHz (uplink) and 921 - 960 MHz (downlink). Channel numbers 955 to 1023.

Can Arduino send text messages?

Send SMS. This sketch send a SMS message from an Arduino or Genuino board equipped with a GSM shield. Using the serial monitor of the Arduino Software (IDE), you'll enter the number to connect with, and the text message to send.

What is sim900a GSM module?

The SIM900A is a readily available GSM/GPRS module,used in many mobile phones and PDA. The module can also be used for developing IOT (Internet of Things) and Embedded Applications. SIM900A is a dual-band GSM/GPRS engine that works on frequencies EGSM 900MHz and DCS 1800MHz.

What is sim800 GSM module?

SIM800 is a quad-band GSM/GPRS module that works on frequencies 850MHz GSM, 900MHz EGSM, 1800MHz DCS, and 1900MHz PCS.It also features GPRS multi-slot class 12/class 10 (optional), and supports CS-1, CS-2, CS-3, and CS-4 GPRS coding schemes. It has one UART port.

What are SMS commands?

Programmable SMS is used to exchange text messages between people, while Commands use SMS as the means to deliver machine-to-machine messages. You use the Commands resource to send a text message ONLY to a Twilio SIM, not to a person's phone number.

How do I use SMS?

You need to put the mobile number of the user you want to send the message to and type in your message into the message field. Way2SMS has a collection of free, “forward” type SMS that you can see on the right side of the page.

How can I send SMS from computer to mobile?

1. GlobFone only has an SMS option; you cannot send pictures. To use it, all you need to do is put in the number you want to text and add a message.
2. Pushbullet is one of the most popular desktop apps to connect your Android phone to your computer.
3. AirDroid is nearly the same as Pushbullet.

Can I send SMS from my PC?

Text from your tablet and computer – a completely new messaging experience via the cloud. With mysms you can send/receive text messages on your Windows 8 / 10 PC or tablet using your current phone number. Your SMS inbox is synced with your phone and always up to date, no matter from which device you send your messages.

What is meant by GSM?

The Global System for Mobile Communications (GSM) is a standard developed by the European Telecommunications Standards Institute (ETSI) to describe the protocols for second-generation (2G) digital cellular networks used by mobile devices such as mobile phones and tablets.

What is meant by AT commands?

AT commands are instructions used to control a modem. AT is the abbreviation of ATtention. Every command line starts with "AT" or "at". That's why modem commands are called AT commands. Note that the starting "AT" is the prefix that informs the modem about the start of a command line.

What is GSM modem and how it works?

A GSM modem is a wireless modem that works with a GSM wireless network. A wireless modem behaves like a dial-up modem. The main difference between them is that a dial-up modem sends and receives data through a fixed telephone line while a wireless modem sends and receives data through radio waves.

How do I send a GPS location via SMS?

Share Location via SMS on Android Open the default SMS on Android, enter the sender name and tap on attachment icon at the left of the input box > Make sure your GPS is ON > Tap on Location icon at the last > Send current location.

What is Arduino Uno used for?

Overview. The Arduino Uno is a microcontroller board based on the ATmega328. It has 20 digital input/output pins (of which 6 can be used as PWM outputs and 6 can be used as analog inputs), a 16 MHz resonator, a USB connection, a power jack, an in-circuit system programming (ICSP) header, and a reset button.

What is GPRS data?

General Packet Radio Service (GPRS) is a packet oriented mobile data standard on the 2G and 3G cellular communication network's global system for mobile communications (GSM). It provides moderate-speed data transfer, by using unused time division multiple access (TDMA) channels in, for example, the GSM system.

What does Arduino mean?

Definition - What does Arduino mean? Arduino refers to an open-source electronics platform or board and the software used to program it. Arduino is designed to make electronics more accessible to artists, designers, hobbyists and ayone interested in creating interactive objects or environments.

How do I find Arduino location?

Call immediately to your Arduino, hidden in your car, and it will send you an SMS with the location, longitude and latitude at the moment, and it also sends GPS data to a web server with the realtime position (Google Maps). Thanks to the GPS+GPRS shield you can track your car in realtime.

How do I send an Arduino command?

Start by uploading blink sketch to your Arduino then connect it to your ESP8266 like this: TX-TX and RX-RX. Now open Serial Monitor and send AT command and see if it responds. If so then you can control it using your Arduino by wiring it back to TX-RX and RX-TX.

What is GSM module PDF?

A customised Global System for Mobile communication (GSM) module is designed for wireless radiation monitoring through Short Messaging Service (SMS). This module is able to receive serial data from radiation monitoring devices such as survey meter or area monitor and transmit the data as text SMS to a host server.
