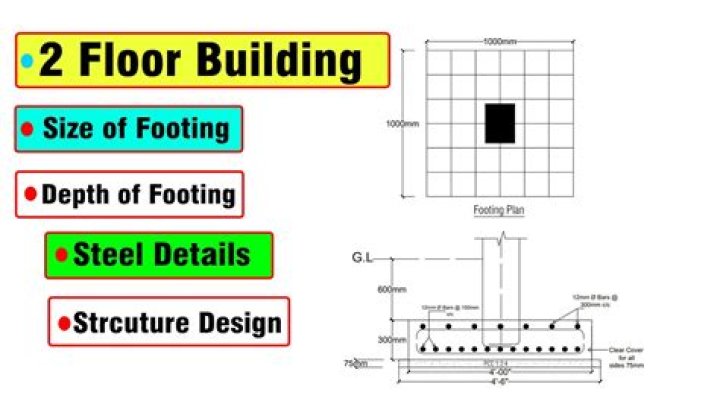

How do you calculate footing size?

How to Calculate Footing Size

1. Determine the width and length of thecement slab in inches.
2. Divide the width by 12 to convert it to feet.
3. Divide the length by 12 to convert it to feet.
4. Determine the depth or thickness that is requiredfor the footing in inches.
5. Multiply the width by the length and then by thedepth.

Accordingly, what is the size of a standard footing?

Concrete Footing Dimensions

Minimum Width of Concrete or Masonry Footings(inches)
Load-Bearing Value of Soil (psf)
4-Inch Brick Veneer Over Wood Frame or 8-InchHollow Concrete Masonry
1-story	19	15
2-story	25	19

Furthermore, how deep should footings be? Footings need to be minimum 1m deep by600mm wide.

One may also ask, what are the factors that determine the size of foundation?

Mainly foundation depends on following factors:Types of soil. Bearing capacity of soil. Structural load.

• The superstructural load.
• The bearing capacity of the sub soil.
• The location of ground water table.
• Settlement.
• Stress overlap.
• The location of property line.

What are the types of footings?

Various Types of Footings for Your House

• Continuous Wall Footing: Footing which supports a long masonryor RCC wall is known as continuous wall footing.
• Isolated Footing: Footing which supports an individual columnis known as Isolated footing.
• Combined Footing:
• Strip Footing:
• Strap Footing:
• Raft Footing:
• Pile Footing.

Related Question Answers

What is the minimum width of a footing?

12 inches

Does a concrete slab need footings?

While not a requirement, a concrete slabfoundation provides a solid, clean surface for your steel buildingand can help it last longer. Since the building will requireanchoring to minimize shifting, pouring a concrete slabgives you a chance to pour footings as well.

How do I choose a foundation for a building?

The selection of a particular type of foundation is oftenbased on a number of factors, such as:

1. Adequate depth. The foundation must have an adequate depth toprevent frost damage.
2. Bearing capacity failure.
3. Settlement.
4. Quality.
5. Adequate strength.
6. Adverse soil changes.
7. Seismic forces.

What are the types of deep foundation?

The types of deep foundations in general use are asfollows:

• Basements.
• Buoyancy rafts (hollow box foundations)
• Caissons.
• Cylinders.
• Shaft foundations.
• Pile foundations.

What is the purpose of foundation?

In new construction foundation functions areplanned in. A building foundation actually performs a numberof functions. The three most important are to bear the load of thebuilding, anchor it against natural forces such as earthquakes, andto isolate it from ground moisture.

How do foundations work?

The donors have the final say on how foundation assetsare invested and spent; which charities to support; whether othersshare in foundation governance; and if so, how. A privatefoundation is empowered to work through almost any entity,public or private, to accomplish its charitableobjectives.

What is Grillage foundation?

Grillage Foundation is a type offoundation often used at the base of a column. Itconsists of one, two or more tiers of steel beams superimposed on alayer of concrete, adjacent tiers being placed at right angles toeach other, while all tiers are encased in concrete.

What is bearing capacity of soil?

In geotechnical engineering, bearing capacity isthe capacity of soil to support the loads applied to theground. The bearing capacity of soil is the maximum averagecontact pressure between the foundation and the soilwhich should not produce shear failure in thesoil.

What are the factors that determine the type of a house?

We've outlined some of the most important factors thatinfluence your home's value:

• Neighborhood comps.
• Location.
• Home size and usable space.
• Age and condition.
• Upgrades and updates.
• The local market.
• Economic indicators.
• Interest rates.

What is a raft foundation?

A raft foundation, also called a matfoundation, is essentially a continuous slab resting on thesoil that extends over the entire footprint of the building,thereby supporting the building and transferring its weight to theground.

What is strip foundation?

Strip foundations (or strip footings) area type of shallow foundation that are used to provide acontinuous, level (or sometimes stepped) strip of support toa linear structure such as a wall or closely-spaced rows of columnsbuilt centrally above them.

What is the difference between a footing and a grade beam?

A grade beam differs from a wall footingbecause a grade beam is designed for bending and typicallyspans between pile caps or caissons, while a wallfooting bears on soil and transmits the weight of the walldirectly into the ground.

How long do footings need to cure?

Immediately after leveling the surface, align and insetany deck hardware and then smooth the surface of the concrete.Allow the concrete to cure for one day before constructingyour deck or placing heavy weight on the footing if standardconcrete mix was used, wait about 3 days to beginconstruction.

When combined footing is used?

Combined footings are constructed for two or morecolumns when they are close to each other and their foundationsoverlap. Design of combined footings with example isdiscussed. The function of a footing or a foundation is totransmit the load form the structure to the underlyingsoil.

Is Clay Good for foundations?

It is very poor subsoil and not ideal for support, asfoundations are most stable on soil that does not shift orchange structure. Clay – Clay is made up oftiny particles so it stores water well, but because of its tightgrasp on water it expands greatly when moist and shrinkssignificantly when dry.

How deep should a footing be for a single storey extension?

For a single storey building strip foundationswill typically be 450mm wide and at least 200mm deep, andfor two storeys 600mm wide and 200mm deep.

Do deck footings need rebar?

Using Rebar for Concrete Deck Footings.Footings with large bearing areas or unstable soil canbenefit from adding rebar to prevent cracking. Whenrebar is placed within a footing, it should becompletely encased in concrete by a minimum of 3 inches on allsides.
