What is address space and address range in Azure?

Azure provides system routes between subnets, Virtual Networks, and on-prem networks. This is the IP range for the entire network that will be divided into subnets. When considering the address space, there are some address ranges which cannot be used for Virtual Networks: 224.0. 0.0 /4 (Multicast)

Subsequently, one may also ask, what is address space and subnet address range?

When creating a Virtual Network, specifying the address space is the most critical configuration. This is the IP range for the entire network that will be divided into subnets. When considering the address space, there are some address ranges which cannot be used for Virtual Networks: 224.0. 0.0 /4 (Multicast)

Additionally, what is address space in VNet? A VNET is the address space. It hosts subnet, where you will connect resources. Subnet segment the address space into multiple subnetworks. By default, an IP in a subnet can communicate with any other IP inside the VNET. Azure route traffic between subnets and outside the VNET.

Also to know is, what is address range in Azure?

By default, the address range is 10.0. 0.0/24. The subnet is a range of IP addresses in your virtual network to isolate VMs. Public subnets have access to the Internet gateway, but private subnets do not.

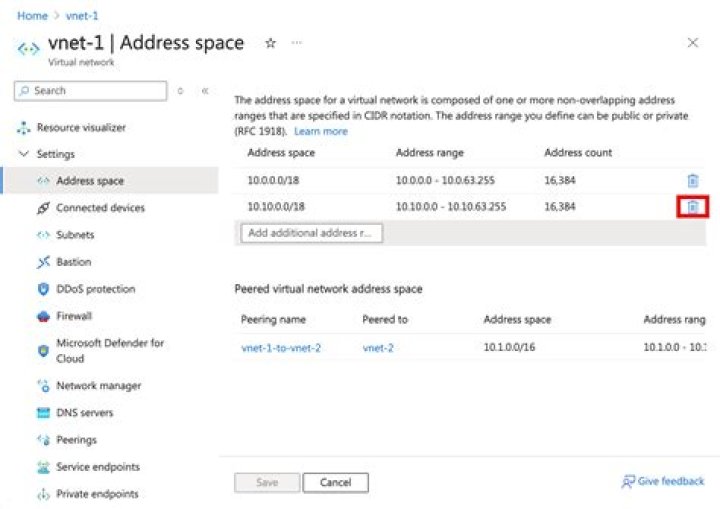

How do I change my Azure address space?

To add or remove an address range:

1. In the search box at the top of the portal, enter virtual networks in the search box.
2. From the list of virtual networks, select the virtual network for which you want to add or remove an address range.
3. Select Address space, under SETTINGS.
4. Complete one of the following options:

Related Question Answers

What does 24 mean in IP address?

This is called “slash notation”. There is a total of 32 bits in IPv4 address space. For example, if a network has the address “192.0. 2.0/24”, the number “24” refers to how many bits are contained in the network. From this, the number of bits left for address space can be calculated.

How do I find the IP address of my Cidr?

The formula to calculate the number of assignable IP address to CIDR networks is similar to classful networking. Subtract the number of network bits from 32. Raise 2 to that power and subtract 2 for the network and broadcast addresses. For example, a /24 network has 232-24 - 2 addresses available for host assignment.

What is subnet address block?

A subnetwork or subnet is a logical subdivision of an IP network. The practice of dividing a network into two or more networks is called subnetting. 100.255 belong to this network. The IPv6 address specification 2001:db8::/32 is a large address block with 2⁹⁶ addresses, having a 32-bit routing prefix.

How do you read an IP address?

On an Android smartphone or tablet: Settings > Wireless & Networks (or "Network & Internet" on Pixel devices) > select the WiFi network that you're connected to > Your IP address is displayed alongside other network information.

How do you read subnetting?

To understand subnetting, you should first understand the decimal and binary structure of an IP address. An IPv4 address is a 32-bit number. To make addresses more straightforward, they are divided into four 8-bit numbers — or octets — separated by a decimal point. These octets range in number from zero to 255.

How is memory address space calculated?

2 Answers

1. 64 KB total memory.
2. The first 16 bytes of the address space (starting at the address 0x0000) is reserved for special function registers (IE1, IE2, IFG1, IFG2, etc.)
3. The next 240 bytes is reserved for 8-bit peripheral devices.
4. The next 256 bytes is reserved for 16-bit peripheral devices.

How do you find the subnet of an IP address?

To calculate the IP Address Subnet you need to perform a bit-wise AND operation (1+1=1, 1+0 or 0+1 =0, 0+0=0) on the host IP address and subnet mask. The result is the subnet address in which the host is situated.

What are subnets in Azure?

A subnet is a range of IP addresses in the VNet. You can divide a VNet into multiple subnets for organization and security. Each NIC in a VM is connected to one subnet in one VNet. NICs connected to subnets (same or different) within a VNet can communicate with each other without any extra configuration.

What is CIDR notation?

CIDR notation is a compact representation of an IP address and its associated routing prefix. The notation is constructed from an IP address, a slash ('/') character, and a decimal number. ::1/128 represents the IPv6 loopback address. Its prefix length is 128 which is the number of bits in the address.

How do you read CIDR notation?

In CIDR notation, IP addresses are written as a prefix, and a suffix is attached to indicate how many bits are in the entire address. The suffix is set apart from the prefix with a slash mark. For instance, in the CIDR notation 192.0. 1.0/24, the prefix is 192.0.

Whats is my IP address?

What is my phone's IP address? Navigate to Settings > About device > Status then scroll down. There, you'll be able to see your Android phone's public IP address along with other information such as MAC address.

What is CIDR in Azure?

Classless Inter-Domain Routing (CIDR) notation is a shorthand representation of a subnet mask. It uses the number of bits to represent a subnet mask. For example, a subnet mask of 255.0. 0.0 uses 8 bits, hence it's written as /8.

How do I make Azure subnet?

Add a subnet

1. Go to the Azure portal to view your virtual networks.
2. Select the name of the virtual network you want to add a subnet to.
3. From Settings, select Subnets > Subnet.
4. In the Add subnet dialog box, enter values for the following settings:
5. To add the subnet to the virtual network that you selected, select OK.

When should you use a static IP address in Azure?

Static public IP addresses are commonly used in the following scenarios:

1. When you must update firewall rules to communicate with your Azure resources.
2. DNS name resolution, where a change in IP address would require updating A records.

How do I make an azure private subnet?

This involves the following steps:

1. Create a route table. Create a route table to facilitate routing within your private subnet.
2. Create a private subnet. Create a private subnet to allocate address space for instances on the virtual network.
3. Attach a network interface.
4. Enable IP forwarding.
5. Add a default route.

What are the methods to access Azure cloud?

Secure access to storage accounts

Azure Storage supports the following authorization methods: Azure Active Directory (Azure AD) integration for blob and queue data. Azure Storage supports authentication and authorization with Azure AD for the Blob and Queue services via Azure role-based access control (Azure RBAC).

What is a VNet?

An Azure Virtual Network (VNet) is a representation of your own network in the cloud. It is a logical isolation of the Azure cloud dedicated to your subscription. When you create a VNet, your services and VMs within your VNet can communicate directly and securely with each other in the cloud.

Can Azure subnets talk to each other?

By default, there is no security boundary between subnets, so VMs in each of these subnets can talk to one another. If you let Azure create a VNet when you create a VM, the name is a combination of the resource group name that contains the VNet and -vnet.

Why is VNet peering?

VNet peering enables you to seamlessly connect Azure virtual networks. The traffic between virtual machines in the peered virtual networks is routed through the Microsoft backbone infrastructure, much like traffic is routed between virtual machines in the same VNet, through private IP addresses only.

What is azure NSG?

A network security group (NSG) in Azure is the way to activate a rule or access control list (ACL), which will allow or deny network traffic to your virtual machine instances in a virtual network. NSGs can be associated with subnets or individual virtual machine instances within that subnet.

Where is Azure's region in Africa located?

Published date: 07 March, 2019

Azure services are now available from our new cloud regions in Johannesburg (South Africa North) and Cape Town (South Africa West), South Africa.

What could be the difference between site to site and VNet peering?

VNet Peering provides a low latency, high bandwidth connection useful in scenarios such as cross-region data replication and database failover scenarios. VPN Gateways provide a limited bandwidth connection and is useful in scenarios where encryption is needed, but bandwidth restrictions are tolerable.

What is Azure load balancer?

An Azure load balancer is a Layer-4 (TCP, UDP) load balancer that provides high availability by distributing incoming traffic among healthy VMs. A load balancer health probe monitors a given port on each VM and only distributes traffic to an operational VM.

What is an NVA in Azure?

This article shows how to deploy a set of network virtual appliances (NVAs) for high availability in Azure. An NVA is typically used to control the flow of network traffic from a perimeter network, also known as a DMZ, to other networks or subnets.

How many subnets can be created VNet?

In the portal, you can define only one subnet when you create a VNet. You can add more subnets to the VNet later after it has been created. You can create a VNet that has multiple subnets by using Azure CLI or PowerShell. When creating a subnet, the address range must be defined.

Can you rename a VNET in Azure?

It is still not possible to rename a VNET. The solution is still to create a new VNET and migrate the resources into it.

How do you create a subnet?

Procedure

1. Click the Network tab.
2. In the Subnets tab, click Create.
3. In the Create Subnet dialog box, specify subnet details, such as the name, subnet IP address or subnet mask, range of IP addresses, gateway address, and broadcast domain.
4. Click Create.

How do I change my Azure subnet?

You can change the subnet, but not the virtual network, that a network interface is assigned to.

1. In the box that contains the text Search resources at the top of the Azure portal, type network interfaces.
2. Select the network interface that you want to change subnet assignment for.
3. Select IP configurations under SETTINGS.

How do I change the IP address on my Azure VM?

Use Azure portal

1. Go to the Azure portal.
2. Select Virtual Machines (Classic).
3. Select the affected Virtual Machine.
4. Select IP addresses.
5. If the Private IP assignment is not Static, change it to Static.
6. Change the IP address to another IP address that is available in the Subnet.
7. Select Save.

What is subnet delegation Azure?

Subnet delegation enables you to designate a specific subnet for an Azure PaaS service of your choice that needs to be injected into your virtual network. Subnet delegation provides full control to the customer on managing the integration of Azure services into their virtual networks.
